Professional Flat Roof Joist Layout and Design Services

Look, I've been doing flat roof joist layout and design in Queens for over two decades, and I can tell you right now - this isn't something you wing. The structural integrity of your entire flat roof system depends on getting that joist layout planning and positioning absolutely perfect from day one.

Every single flat roof project I take on starts with meticulous planning. We're talking about load calculations, beam sizing, spacing requirements, and understanding how Queens' unique weather patterns - those brutal nor'easters and summer heat waves - will affect your roof structure over time.

Understanding Flat Roof Joist Systems in Queens

Here's the thing about flat roof joists layout - it's not just about slapping some lumber up there and calling it a day. In Queens, we deal with snow loads that can hit 30 pounds per square foot during a bad winter, plus we've got that constant salt air from the East River and Long Island Sound eating away at everything.

When I'm designing a joist system, I start with the building code requirements - Queens follows NYC building codes, which are stricter than most places for good reason. We need joists that can handle live loads, dead loads, and wind uplift forces. And trust me, after seeing what Hurricane Sandy did to improperly designed roof structures in Rockaway, I don't cut corners on structural design.

The typical flat roof in Queens uses either engineered lumber joists, steel joists, or in some commercial applications, open web steel joists. Each has its place, but the layout and spacing requirements are completely different. For residential flat roofs, I usually work with 16" or 24" on-center spacing depending on the span and load requirements.

Critical Factors in Joist Layout Planning and Positioning

Every project starts with a detailed site survey. I measure everything twice, check the existing structure if it's a renovation, and calculate exactly what we're working with. The building's dimensions, the roof's intended use, drainage requirements - it all factors into the joist layout.

Drainage is huge in Queens. We get about 45 inches of precipitation per year, and if your joist layout doesn't account for proper slope toward your drains and scuppers, you're looking at ponding water and eventual structural failure. I typically design for a minimum 1/4" per foot slope, but often go with 1/2" per foot for better drainage.

Load path analysis is where most contractors mess up. You can't just look at individual joist capacity - you need to understand how loads transfer through the entire system. From the roof membrane down through the decking, joists, beams, columns, and ultimately to the foundation. Miss one connection detail and the whole system can fail catastrophically.

Last month I was called to inspect a flat roof collapse in Elmhurst. The original contractor had sized the joists correctly but completely ignored the beam-to-joist connections. Under snow load, the joists literally pulled away from the supporting beam. That's a $150,000 mistake that proper joist layout planning would have prevented.

Material Selection and Spacing Requirements

For flat roof joist layout in Queens, I typically use engineered lumber joists for spans up to 32 feet. Beyond that, we're looking at steel or open web joists. The material choice affects everything - spacing, connection details, fire ratings, and long-term durability.

Engineered lumber joists are great for residential work. They're consistent, lightweight, and can span impressive distances. But you need to follow the manufacturer's specifications exactly. No field modifications, no drilling holes wherever you want, no "close enough" installations.

Steel joists are my preference for commercial flat roofs or heavy load applications. They're more expensive upfront, but they'll outlast the building in most cases. Plus, with steel you get better fire ratings and can accommodate heavier HVAC equipment loads without additional reinforcement.

Technical Design Process

My design process starts with load calculations. I need to know the dead load - that's the weight of the roof assembly itself including decking, insulation, membrane, and any permanent equipment. Then there's live load - people walking on the roof, maintenance equipment, temporary snow loads.

In Queens, we design for a minimum 30 psf snow load, but I often go higher depending on the roof configuration. Flat roofs with parapets can create snow drifting that dramatically increases local loads. I've seen 6-foot snow drifts against parapet walls after big storms.

Wind uplift is another critical factor. We're close enough to the coast that wind loads can be significant, especially on taller buildings. The joist-to-beam connections need to resist both gravity loads pushing down and wind loads trying to lift the roof off the building.

Deflection limits are just as important as strength. A joist that's strong enough to carry the load but deflects too much will cause cracking in the roof membrane, ponding water, and eventual leaks. I design for L/240 deflection limits at minimum, often L/360 for critical applications.

Installation and Quality Control

Even the best joist layout design is worthless if the installation is sloppy. I personally inspect every critical connection during installation. Joist hangers need to be sized correctly and installed with the right fasteners. Beam pockets need proper bearing area and lateral restraint.

One thing I see constantly in Queens is contractors trying to rush the joist installation to beat weather. That's exactly when mistakes happen. Missing fasteners, undersized connections, joists installed upside down - I've seen it all.

Quality control starts with having the right crew. My foreman Miguel has been with me for 15 years and knows exactly what to look for. Every joist gets checked for proper spacing, bearing, and connection before we move to the next phase.

We also coordinate closely with the building inspector. In Queens, structural inspections are required before you can install decking. I make sure everything is ready for inspection the first time - no callbacks, no delays, no surprises.

Common Design Challenges in Queens

Queens presents unique challenges for flat roof design. We've got everything from 1920s masonry buildings in Astoria to modern high-rises in Long Island City. Each building type requires a different approach to joist layout and design.

Older buildings often have undersized or deteriorated supporting structures. Before I can design new joists, I need to verify that the existing beams and columns can handle the additional loads. Sometimes that means structural reinforcement before we even start the roof work.

Seismic considerations are becoming more important too. New York isn't California, but we do need to design for lateral loads. Proper joist-to-beam connections and diaphragm action in the roof deck help the building resist seismic forces.

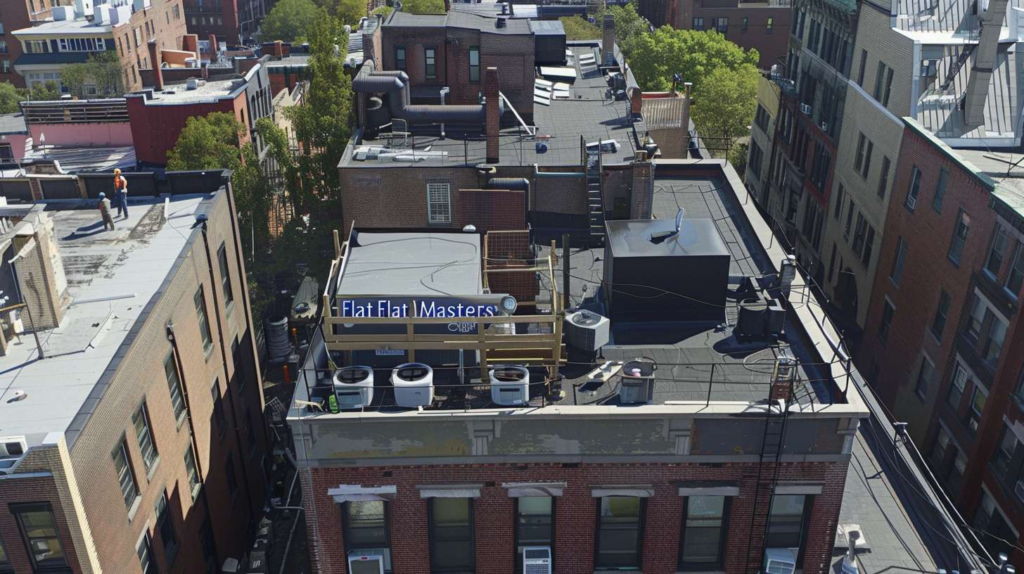

HVAC equipment placement is always a challenge. Rooftop units are getting bigger and heavier, and they create concentrated loads that standard joist spacing can't handle. I often need to design supplemental framing or beam reinforcement to support this equipment safely.

Cost Considerations and Value Engineering

Proper joist layout design isn't cheap, but it's a lot less expensive than fixing a structural failure later. A typical residential flat roof joist system runs $8-12 per square foot just for the structural framing, not including decking or roofing materials.

Commercial projects can be more expensive depending on the span requirements and load criteria. Steel joist systems might run $15-25 per square foot, but they're often the most cost-effective solution for longer spans.

I always present clients with options. Maybe we can reduce costs by adjusting the roof layout to minimize long spans. Or we might save money by using a hybrid system - steel beams with wood joists, or engineered lumber joists with steel reinforcement only where needed.

Why Professional Design Matters

I can't tell you how many times I've been called to fix problems caused by improper joist layout. Sagging roofs, cracked membranes, water damage, structural failures - it all goes back to cutting corners on the structural design.

A properly designed flat roof joist layout will last 50+ years with minimal maintenance. The upfront investment in professional design and quality materials pays for itself many times over in avoided repairs and extended service life.

At Flat Masters NY, we don't just install roof systems - we engineer complete solutions that work reliably in Queens' challenging environment. Our joist layout and design services include structural calculations, detailed drawings, building code compliance, and coordination with local inspectors.

If you're planning a flat roof project in Queens, don't leave the structural design to chance. Call us at (718) 555-0123 for a professional consultation. We'll make sure your roof structure is designed right the first time.
