Professional Flat Roof Drainage Calculations for Your Property

Look, I've been calculating flat roof drainage systems across Queens for over two decades, and I can tell you that proper drainage calculations aren't just recommendations - they're the difference between a roof that lasts 30 years and one that fails in five. Most property owners have no idea that their flat roof's drainage capacity needs to handle a 100-year storm event, which in New York means calculating for about 8.5 inches of rainfall per hour.

Here's the thing about flat roof drainage calculations - they're not optional.

The International Building Code requires that every flat roof system be designed to handle both primary and secondary drainage, and trust me, the city inspectors in Queens know exactly what to look for. I've seen too many contractors skip the proper calculations and end up with ponding water, structural damage, and insurance claims that could have been avoided with twenty minutes of math.

Understanding Flat Roof Drainage Load Requirements

When we calculate flat roof drainage for properties in Queens, we start with the rainfall intensity data specific to our region. The National Weather Service gives us precise numbers - we design for 6.85 inches per hour for a 100-year storm, but I always bump that up to 8.5 inches because climate patterns are changing and I'd rather oversize than deal with callbacks. Your roof area multiplied by this rainfall intensity gives us the total volume of water we need to move, measured in gallons per minute.

For a typical 2,000 square foot flat roof in Astoria, we're looking at moving approximately 700 gallons per minute during a major storm event. That's a lot of water, and it needs somewhere to go fast. The primary drainage system handles the bulk of this load, while secondary drainage - that's your scuppers and overflow drains - kicks in when water levels reach about two inches above the roof surface.

But here's where most people get confused about flat roof drain spacing. The code doesn't just say "put some drains wherever" - there are specific calculations based on your roof's square footage, slope, and the flow capacity of each drain size.

How to Calculate Flat Roof Drainage Capacity

Every drain has a specific flow rate based on its size and the head pressure above it. A 4-inch roof drain can typically handle about 87 GPM (gallons per minute) with a 2-inch head of water above the drain inlet. Step up to a 6-inch drain, and you're moving around 195 GPM under the same conditions. The math gets more complex when you factor in pipe slope, friction losses, and the actual drainage coefficient of your roof surface - smooth EPDM drains faster than a textured modified bitumen surface.

I always use the Manning equation for calculating flow rates in the horizontal runs, but honestly, most property owners don't need to understand the hydraulic engineering behind it. What you need to know is that undersized drainage kills roofs. Last month on Northern Boulevard, we replaced a entire flat roof system because the original contractor installed three 4-inch drains on a 4,000 square foot roof. The calculations called for either four 4-inch drains or three 6-inch drains minimum.

The key factors in our drainage calculations include roof area, rainfall intensity, roof slope (even "flat" roofs need 1/4 inch per foot minimum slope to drains), pipe sizing, and something called the runoff coefficient. For flat roofs, we use a coefficient of 0.95, meaning 95% of the rainfall needs to be handled by your drainage system - the other 5% accounts for evaporation and minor absorption.

Primary vs Secondary Drainage System Requirements

Here's what the code actually requires, and what I've learned works in practice after installing drainage on everything from small residential buildings in Elmhurst to massive commercial properties in Long Island City. Your primary drainage system must handle the full calculated storm load at the roof level. Secondary drainage - scuppers, overflow drains, or parapet wall openings - must activate when water reaches two inches deep and handle the same volume as your primary system.

Most flat roofs in Queens need one drain per 1,000 square feet as a baseline, but that's just the starting point. Roof geometry matters tremendously. An L-shaped roof needs different drain spacing than a simple rectangle. Internal valleys, roof equipment, and parapets all affect water flow patterns and drainage calculations.

Secondary drainage isn't backup drainage - it's emergency overflow designed to prevent catastrophic roof loading if your primary drains get blocked. I've seen flat roofs collapse under water loads when drains clogged during storms and there was no secondary drainage path. The weight of water is about 5.2 pounds per square foot per inch of depth. Six inches of ponded water puts over 31 pounds per square foot of additional load on your roof structure.

Technical Drain Sizing and Placement Standards

The actual calculations for flat roof drain spacing involve several variables that most contractors honestly don't calculate properly. You need to determine the tributary area for each drain - that's the roof area that naturally drains toward each outlet based on the roof slope pattern. Then calculate the required flow rate for that area using local rainfall data.

Standard drain sizes and their approximate capacities with 2-inch head pressure: 3-inch drains handle about 48 GPM, 4-inch drains move 87 GPM, 5-inch drains handle 138 GPM, and 6-inch drains can move 195 GPM. But these numbers change dramatically based on pipe runs, fittings, and elevation changes in your drainage system.

For flat roof drain spacing, we typically place drains no more than 75 feet apart in any direction, with additional drains needed for roof areas that can't drain to perimeter scuppers. Interior drains should be located at low points, never in high spots where they'll be the last to receive water flow.

Common Drainage Calculation Mistakes

I can't tell you how many times I've been called to fix drainage problems that started with bad calculations. The biggest mistake? Assuming that more slope means fewer drains needed. Wrong. The International Plumbing Code requires specific drainage capacities regardless of slope, and while better slope helps water move faster, it doesn't change the volume calculations.

Another common error is calculating drainage based on roof deck area instead of the actual drainage area. If your roof has parapets, the drainage area includes the parapet walls up to their overflow level. For a roof with 8-inch parapets, you're calculating drainage for the roof area plus the vertical wall surface area that contributes runoff.

And here's something that trips up even experienced contractors - pipe sizing throughout the entire system. Your drains might be properly sized, but if the horizontal runs are undersized or have too many fittings, the whole system becomes a bottleneck. We size horizontal pipes using the same flow calculations as the drains themselves.

Local Code Requirements and Professional Installation

In Queens, all flat roof drainage systems need to comply with both the International Building Code and local amendments adopted by the NYC Department of Buildings. Professional drainage calculations require a licensed engineer's stamp for commercial buildings over 3,000 square feet or any building over three stories.

But even for smaller residential buildings, proper drainage calculations prevent costly problems down the road. Insurance companies are getting stricter about water damage claims, and they'll absolutely investigate whether your drainage system was properly designed and maintained.

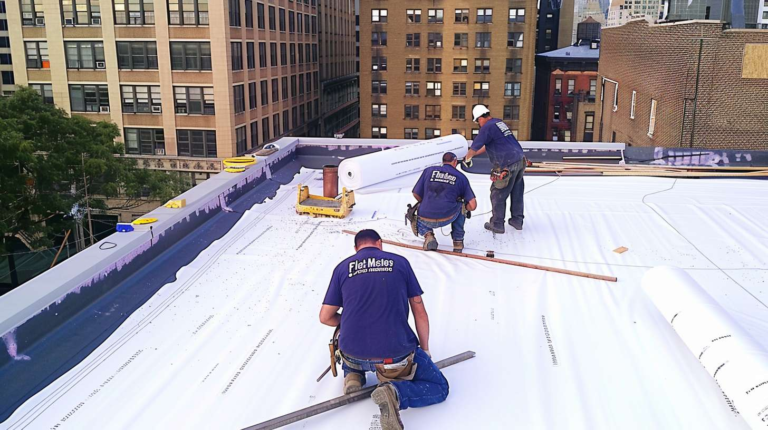

At Flat Masters NY, we use specialized software that factors in all the local requirements - rainfall data specific to Queens, local code requirements, and real-world performance data from our 20+ years installing flat roof systems throughout the borough. Our calculations include detailed drawings showing drain locations, pipe sizing, slope requirements, and secondary drainage provisions.

The investment in proper drainage calculations - whether you're installing a new flat roof or upgrading an existing system - pays for itself many times over in prevented water damage, extended roof life, and insurance claim avoidance. Don't trust your flat roof drainage to guesswork or rules of thumb. The math matters, and getting it right the first time is always cheaper than fixing it later.
